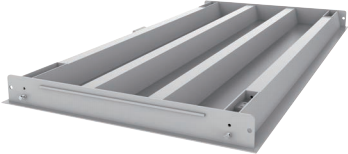

SU Board Truck Scale
Utilizing high-strength alloy steel deck plates, this system offers configurable single-section lengths of 1.5-3m with total span up to 6m. Capacity ranges from 30t, achieving ±5kg static accuracy and ±0.1%FS dy- namic precision.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Material | Carboon Steel |
| Overall Width | 1~3m or Customized |
| Overall Length | 1.5~6m or Customized |
| Weighbridge Deck Surface | Chequer, Plain or Dimpled |
| Max.Capacity range | 30t |
| Division | 5kg，10kg |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Beam Structure | U beams | Accuracy Class | C3,OIML III level |
| Load Cell | Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified;Output: Analogue or Digital |
| Load Cell Access | Top or Side acccess |
| Power Supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Indicator | Type: Analogue or Digital; Display: LED or LCD display |
| Mounting Options | Pit or Pitless |
| Junction Box | IP67 protection,stainless steel material,with 15m standard signal cable |
| Optional Features | Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc. |
| Typical Applications | Industrial production and weighing, ports, gas and oil industries, food processing, coal handling, quarries, mining machinery, metallurgy, construction industry, etc. (Explosion-proof solutions are also available.) |
| Warranty | 12 months |
| Certifications | CE,ISO9001,OIML |
Features and Functions
- Simplified Deployment: Deck plate installation accu- racy error <2mm.
- Enhanced Durability:: 8mm U-shaped reinforcement structure increases torsional stiffness by 50%, passing 1 million fatigue tests.
- Full Environmental Resistance:IP66 protection rating with -10℃~+80℃ operating range, resistant to salt spray/acid rain corrosion.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
