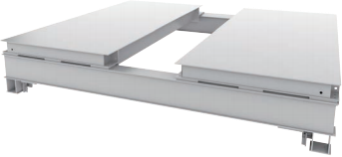

HD: HeavyDuty Steel Series
The HeavyDuty series is specifically designed for heavy vehicles and can withstand weights of up to 200 tons. Its robust and rigid structure is ideal for weighing dump trucks, ensuring an efficient and safe weighing experience.
Scale Type:
Steel Truck Scale
Material:
Carboon Steel
Weighbridge Deck Surface:
Overall Width:
Overall Length:
Max.Capacity:
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Material | Carboon Steel |
| Overall Width | 2m,2.5m,3m,3.2m, 3.4m or Customized |
| Overall Length | 5m,6m,7m,8m,9m,10m,12m,14m,15m,16m,18m,20m,21m,22m,23m,24m or Customzed |
| Weighbridge Deck Surface | Chequer, Plain or Dimpled |
| Max.Capacity range | 200t |
| Division | 10kg,20kg,50kg,100kg |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Beam Structure | U beams | Accuracy Class | C3,OIML III level |

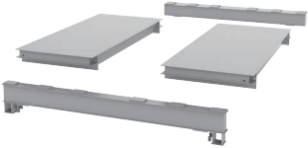

| Modules and Structures | The HD type features cross beams positioned beneath the weighbridge deck, with all panels being thickened and reinforced, resulting in excellent load-bearing capacity. |
| Load Cell | Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified;Output: Analogue or Digital |
| Load Cell Access | Top or Side acccess |
| Power Supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Indicator | Type: Analogue or Digital; Display: LED or LCD display |
| Mounting Options | Pit or Pitless |
| Junction Box | IP67 protection,stainless steel material,with 15m standard signal cable |
| Optional Features | Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc. |
| Typical Applications | Industrial production and weighing, ports, gas and oil industries, food processing, coal handling, quarries, mining machinery, metallurgy, construction industry, etc. (Explosion-proof solutions are also available.) |
| Warranty | 12 months |
| Certifications | CE,ISO9001,OIML |
Features and Functions
- Tailored Design: Customizable to meet specific customer requirements, suitable for the heaviest vehicles with a load capacity of up to 200t.
- Exceptional Load-Bearing Capacity: Features cross beams positioned beneath the weighing platform, with all panels thickened and reinforced for excellent performance under heavy loads.
- Robust Construction:Designed for durability and reliability in demanding environments, ensuring that the weighbridge meets unique operational demands.
Indicator Selection
122 Indicator
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
133 Indicator
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
155 Indicator
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
255 Indicator
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
Hand-held NF805 Indicator
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Hand-held 322 Indicator
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
How long is the warranty for your scales?
We offer a standard 2-year warranty on all models, with optional extended service packages.
How do I calibrate the scale?
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
What is the maximum weight capacity?
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Are the scales waterproof?
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
