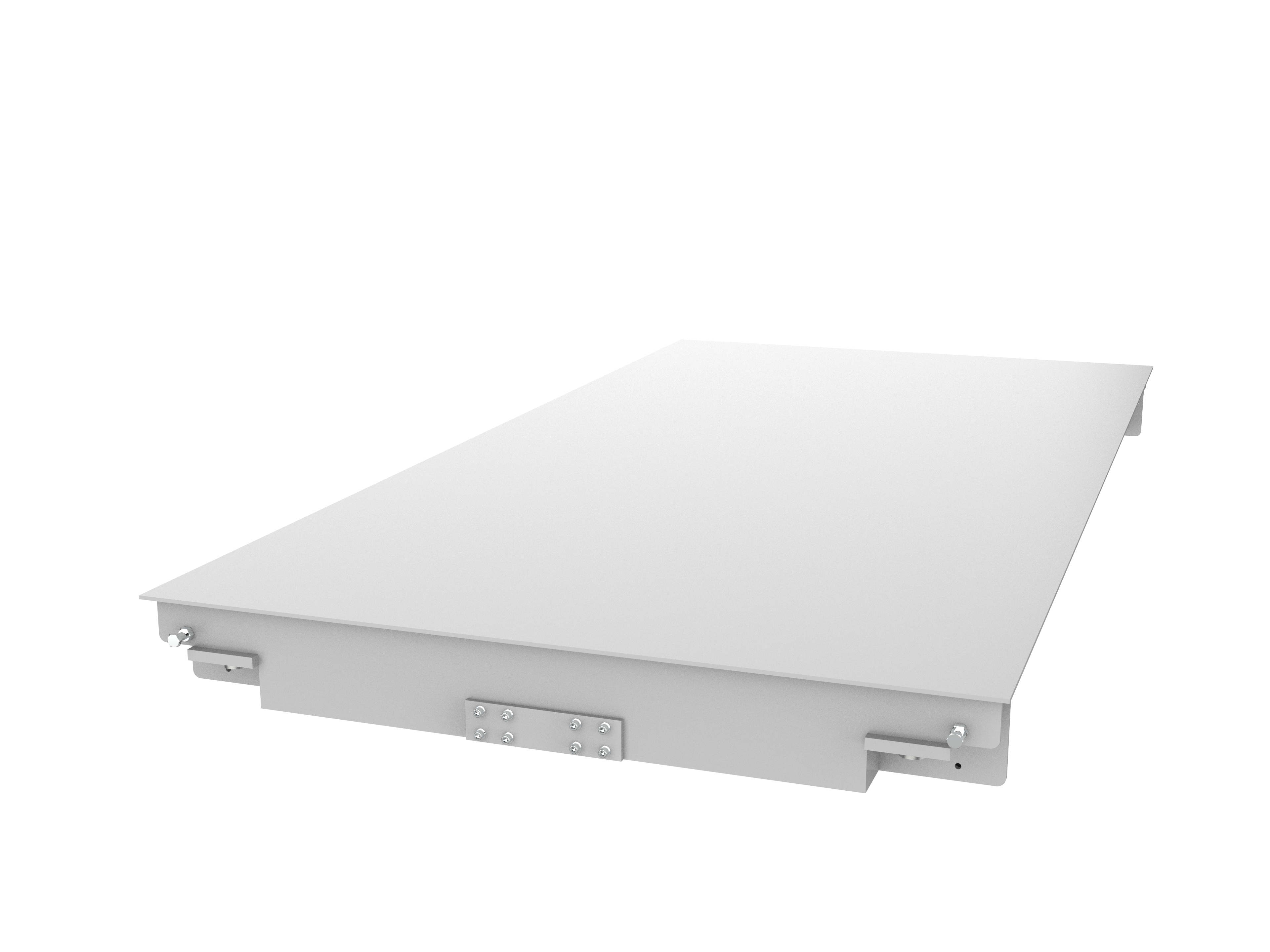

A2: RigidUnity Steel Series
The A2 series boasts a fully integrated design, combining the end plates and weighbridge deck into a single, rigid unit. This construction enhances stability and durability, making it suitable for heavy-duty applications where strength is paramount.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Material | Carbon Steel |
| Overall Width | 2m,2.5m,3m,3.2m, 3.4m or Customized |
| Overall Length | 5m,6m,7m,8m,9m,10m,12m,14m,15m,16m,18m,20m,21m,22m,23m,24m or Customized |
| Weighbridge Deck Surface | Chequer, Plain or Dimpled |
| Max.Capacity range | 30t, 40t, 60t, 80t, 100t, 120t |
| Division | 10kg,20kg,50kg,100kg |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Beam Structure | U beams |
| Accuracy Class | C3,OIML III level |
| Modules and Structures | Middle dissected, with bolts connection;The end plates and the weighbridge deck are connected (not integrated),featuring detachable end plates for top access and convenient maintenance. |
| Load Cell | Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified;Output: Analogue or Digital |
| Load Cell Access | Top or Side access |
| Power Supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Indicator | Type: Analogue or Digital; Display: LED or LCD display |
| Mounting Options | Pit or Pitless, Pitless is more common |
| Junction Box | IP67 protection,stainless steel material,with 15m standard signal cable |
| Optional Features | Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc. |
| Typical Applications | Industrial production and weighing, ports, gas and oil industries, food processing, coal handling, quarries, mining machinery, metallurgy, construction industry, etc. (Explosion-proof solutions are also available.) |
| Warranty | 12 months |
| Certifications | CE,ISO9001,OIML |
Features and Functions
- Fully Integrated Design: Combines end plates and weighbridge deck into a single rigid unit, minimizing movement and enhancing weighing accuracy.
- Reduced Maintenance Needs: Fewer joints and connections lead to lower maintenance requirements over time.
- Customizable Dimensions: Tailored sizes ensure compatibility with various vehicle types and operational needs.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
