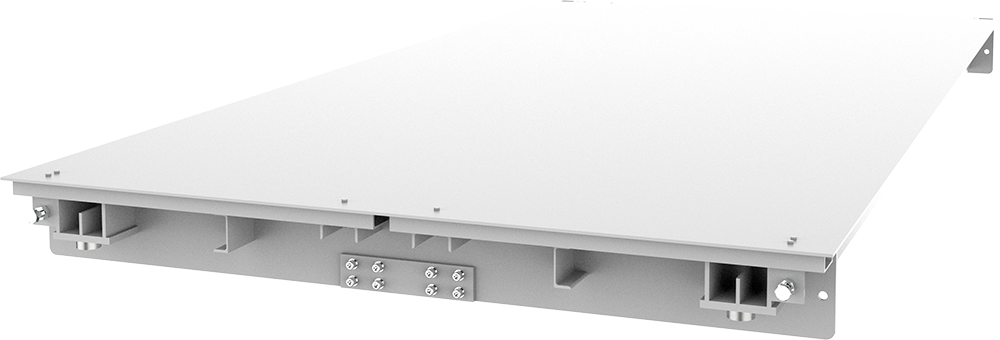

A1: FlexiConnect Steel Series

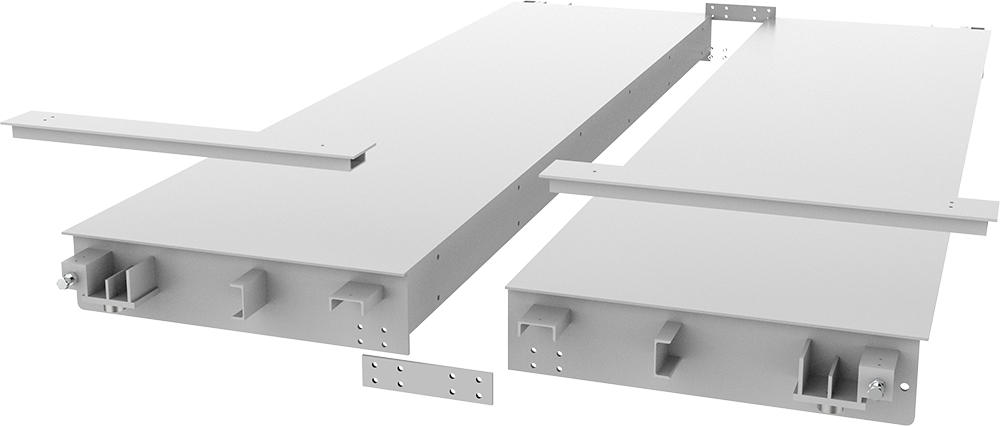

The A1 series features a middle dissected design with bolt connections, allowing easy maintenance through detachable end plates. This configuration ensures accessibility while maintaining structural integrity, making it ideal for environments where regular upkeep is necessary.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Material | Carbon Steel |
| Overall Width | 2m,2.5m,3m,3.2m, 3.4m or Customized |
| Overall Length | 5m,6m,7m,8m,9m,10m,12m,14m,15m,16m,18m,20m,21m,22m,23m,24m or Customized |
| Weighbridge Deck Surface | Chequer, Plain or Dimpled |
| Max.Capacity range | 30t, 40t, 60t, 80t, 100t, 120t |
| Division | 10kg,20kg,50kg,100kg |
| Safe Overload | 120%FS |
| Ultimate Overload | 150%FS |

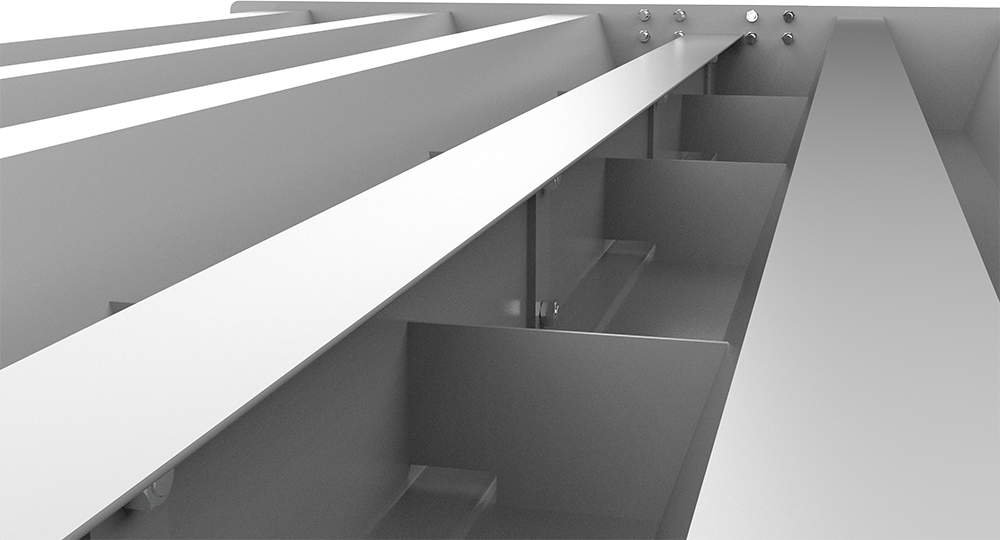

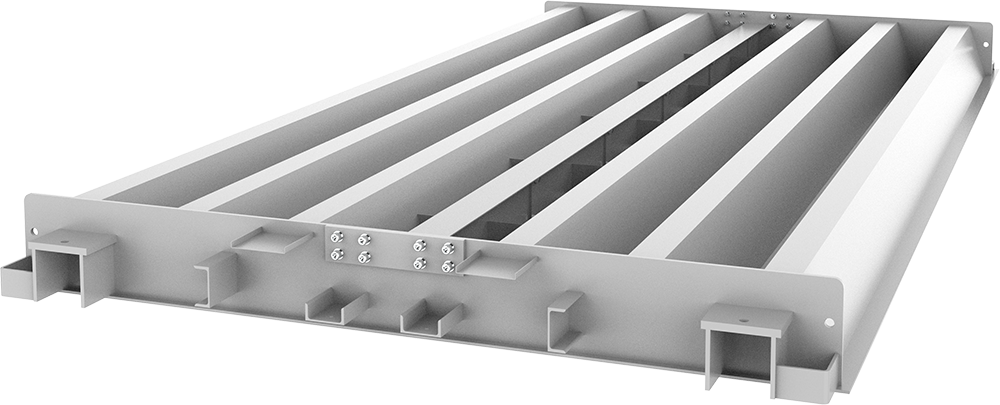

| Beam Structure | U beams |
| Accuracy Class | C3,OIML III level |

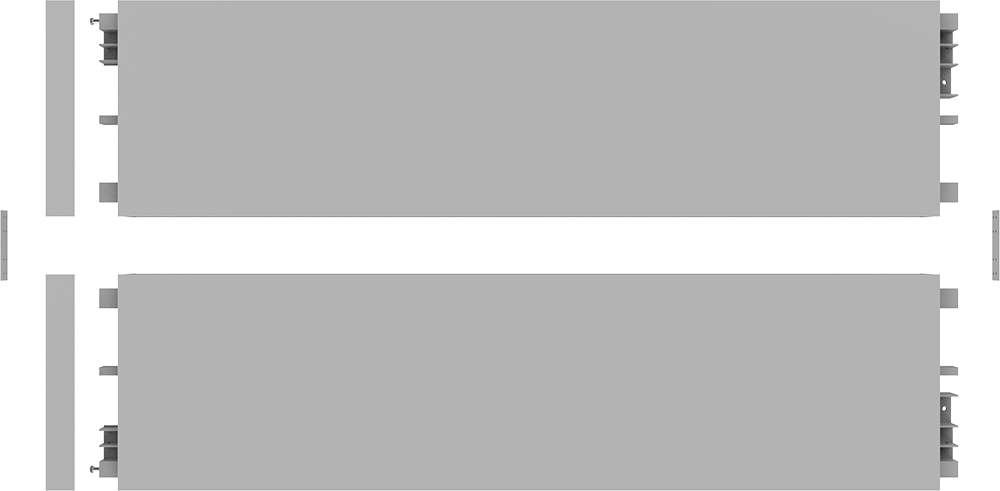

| Modules and Structures | Middle dissected, with bolts connection;The end plates and the weighbridge deck are connected (not integrated),featuring detachable end plates for top access and convenient maintenance. |
| Load Cell | Type: Column load cell or Double shear beam load cell (both with OIML certificate) Or Customer-Specified;Output: Analogue or Digital |
| Load Cell Access | Top or Side access |
| Power Supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Indicator | Type: Analogue or Digital; Display: LED or LCD display |
| Mounting Options | Pit or Pitless |
| Junction Box | IP67 protection,stainless steel material,with 15m standard signal cable |
| Optional Features | Galvanization, Rail, Ramps, Large Screen Display, Printer, Lightning Protection Device, Weighing Management Software, Signal Light, etc. |
| Typical Applications | Industrial production and weighing, ports, gas and oil industries, food processing, coal handling, quarries, mining machinery, metallurgy, construction industry, etc. (Explosion-proof solutions are also available.) |
| Warranty | 12 months |
| Certifications | CE,ISO9001,OIML |
Features and Functions
- Wide Channel Design: More weighing channels available, providing key access for straightforward servicing.
- Durable: The modular design ensures durability and efficient maintenance.
- Customizable: Length and width can be tailored to specific site requirements, enhancing operational flexibility.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Lighting traffic, public and administrative and other departments to check the law enforcement of vehicle overload.
- Industrial and mining enterprises, for container ships, and weighing logistics and other occasions, demand for vehicle weighing.
- Flexible mobile weighing inspection, for site shifting, weighing logistics and other occasions; demand for vehicle weighing.
- Places where fixed weighing points are installed without the permission of the law, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
