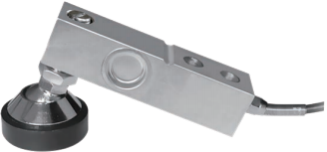

YB101-SQB
SQB weighing sensor is a highly reliable force measurement unit designed for industrial weighing systems. It adopts alloy steel sealed welding structure and temperature compensated strain gauge technology, with high accuracy of ±0.02%FS and temperature drift characteristics of ±0.002%℃ .
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Rated load | 0.5/1/2/3/5/7.5/10t |
| Sensitivity | 2.0±0.002/3.0±0.003mV/V |
| Total error | ±0.02%F.S |
| Creep (30min) | ±0.02%F.S |
| Zero balance | ±1%F.S |
| Compensated Tem range | -10℃~+45℃ |
| Operating Tem range | -30℃~+70℃ |
| Tem effect on sensitivity | ±0.002%F.S.℃ |
| Tem effect on zero balance | ±0.002%F.S.℃ |
| Input resistance | 400±5Ω |
| Output resistance | 352±2Ω |
| Insulation resistance | ≥5000MΩ |
| Recommend excitation | 5V～12V |
| Maximum excitation | 18V |
| Sate overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Protection Class | IP67 |
| Method connecting wire | Input: Red(+) Black(-) Output: Green(+) White(-) |
Features and Functions
- Single Shear Beam Structure: Easy to install, ensuring quick setup and stable performance.
- Low Installation Height: Compact design saves space and suits confined mounting environments.
- High-Quality Alloy Steel: Electroless nickel-plated surface provides excellent corrosion resistance and durability.
- Broad Application Range: Ideal for floor scales, platform scales, belt scales, and batching control in chemical, food, pharmaceutical, and related industries.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.

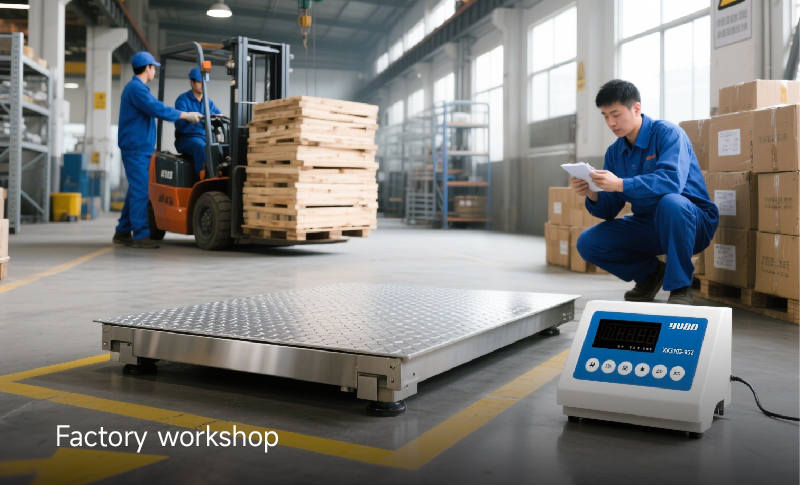

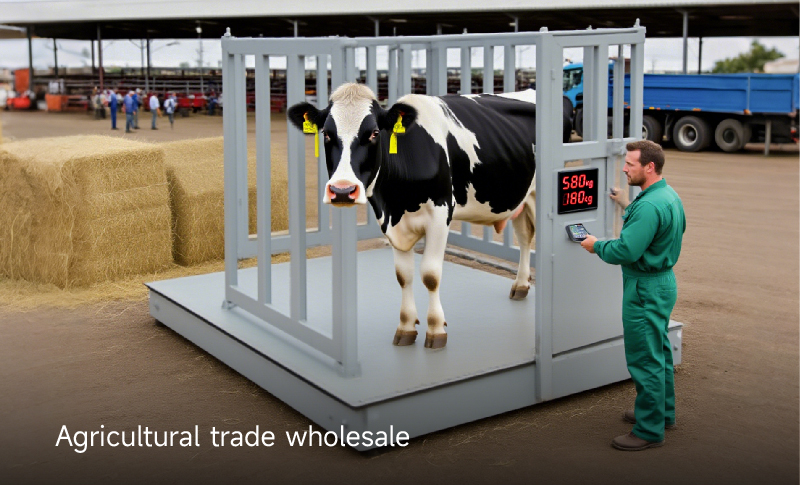

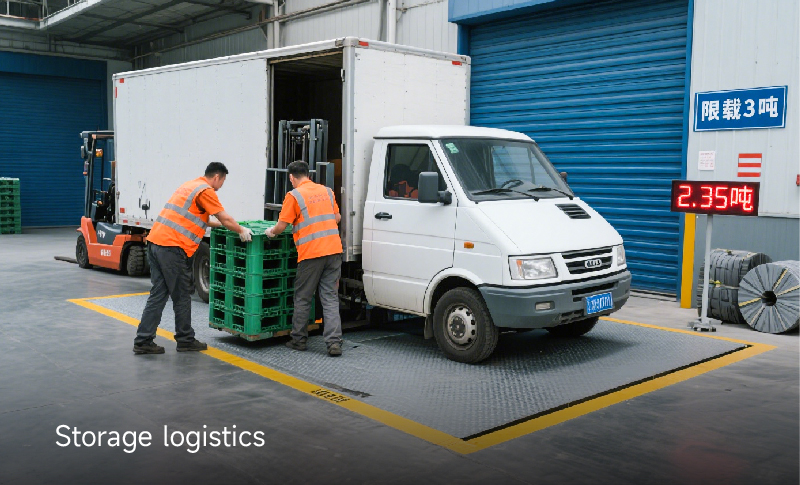

Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
