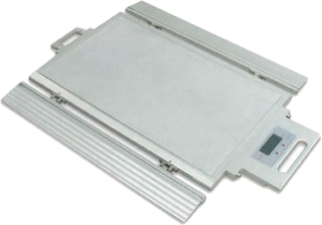

YB-BX-101K Series
The YB-BX-101K axle scale is ultra-thin, lightweight, and made of high-strength aluminum for easy portability. It features a self-contained wheel load weighing system with an optional built-in digital LCD readout. With two 150mm ramps included, it offers a flexible, accurate, and reliable mobile weighing solution ideal for logistics, transportation, and construction.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd | ||||||
|---|---|---|---|---|---|---|---|
| Brand | YUBO | ||||||
| Model | YB-BX-101D-Y-2t | ||||||
| Plateform Surface | Plain | ||||||
| Thickness(mm) | 24.5 | ||||||
| Static Accuracy(%F.S.) | 0.1%～0.5% | ||||||
| Resolution | 5kg graduations | ||||||
| Overload Capacity(%F.S.) | 150% | ||||||
| Excitation voltage(VDC) | 9～15 | ||||||
| Recommended voltage(V) | 10 | ||||||
| Insulation resistance(MQ) | ≥5000(100VDC) | ||||||
| Weight | 28kg | ||||||
| Operation Temp Range | -30℃～+80℃ | ||||||
| Protection Degree | IP66 | ||||||
| Display | 5 Digit,LCD back light | ||||||
| Buttons | 2 buttons,ON/0FF,Zero | ||||||
| Indications | Low Battery,Overload,Error | ||||||
| Power | 4 pcs AAA chargeable battery ,Continous work 72 hours | ||||||
| Calibration | Multipoint linearity adjustm ent (4 points) | ||||||
Features and Functions
- Ultra-Thin & Lightweight: 24.5 mm profile for exceptional portability and easy handling.
- High-Strength Aluminum: Durable alloy construction ensures long-lasting performance.
- Self-Contained Wheel Load Weighing: Independent system offers maximum deployment flexibility.
- Built-In Digital LCD Readout (Optional): Integrated display option provides clear, direct weight viewing.
- Portable & Reliable: Simple, mobile, and accurate solution for on-the-go weighing tasks.
- Includes Two 150 mm Ramps: Supplied ramps enable easy vehicle access and efficient weighing.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
