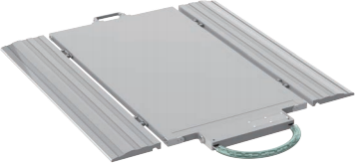

HYT Series
The HYT Series is a highly portable and efficient axle weighing solution, constructed from high-strength alu- minum for lightweight durability. With a slim 24.5mm thickness and IP66-rated waterproof performance, the HYT Series is suitable for a variety of dynamic weighing applications in harsh environments. It supports capaci- ties of up to 20 tons, offering high accuracy and exceptional reliability for both static and mobile operations.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd | ||||||
|---|---|---|---|---|---|---|---|
| Brand | YUBO | ||||||
| Pad Meterial | High strength alluminum | ||||||
| Thickness(mm) | 24.5 | ||||||
| Plateform Surface | Plain | ||||||
| Capacity | 2t,10t,20t | ||||||
| Display | Not Applicable | ||||||
| Excitation voltage(VDC) | 9～15 | ||||||
| Recommended voltage(V) | 10 | ||||||
| Insulation resistance(MQ) | ≥5000(100VDC) | ||||||
| Safe overload(%F.S.) | 125% | ||||||
| Weight | 28kg | ||||||
| Safe overload(%F.S.) | 150% | ||||||
| Waterproof rating | IP66 | ||||||
| Static Accuracy(%F.S.) | 0.1%～0.5% | ||||||
| Buttons | Not Applicable | ||||||
| Temperature Range | -30℃~+80℃ | ||||||
| Resolution | 5kg graduations | ||||||
Features and Functions
- Ultra-Light and Durable Design: High‑strength aluminum construction weighs only 28 kg with a slim 24.5 mm profile for easy transport and rapid deployment without compromising structural integrity.
- High Accuracy and Stability: Static accuracy 0.1%–0.5% F.S. with 5 kg resolution and 150% safe overload capacity ensures reliable, consistent performance across varying load conditions.
- All-Weather Performance & User-Friendly: Engineered for extreme environments, operating reliably from -30℃ to +80℃ while maintaining stable measurement performance.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
