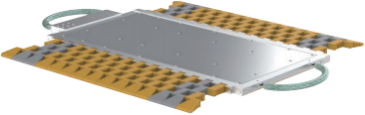

H series
The H Series ultra-thin and convenient weighing solution features compact spoke type sensors and a 23mm ultra-thin platform design, ensuring an efficient and smooth weighing process that significantly enhances user convenience. Its high-strength steel plate cover
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Pad Material | Aviation Aluminum + Stainless Steel |
| Pad Dimensions (L×W×H, mm) | 800×440×23 |
| Ramp Material | ABS Plastic |
| Ramp Dimensions (L×W×H, mm) | 860×600×22 |
| Sensor Model | H-3T |
| Number of Sensors | 18 |
| Single Pad Capacity | 20t |
| Allowed Number of Pads | 32 |
| Allowed Axle Load | 40t |
| Safe Overload (WF.S.) | 125% |
| Static Accuracy (WF.S.) | 0.50% |
| Dynamic Accuracy (WF.S.) | 3%~5% |
| Temperature Range | -30℃~+80℃ |
| Waterproof Rating | IP 65 |
| Signal Processing | Wireless/Wired Transmission |
Features and Functions
- Advanced Shear Beam Sensors: Proprietary design delivers outstanding lateral force resistance and ultra-high precision with stable results regardless of load position.
- Ultra-High Precision: Static accuracy up to 0.02% (model dependent) and dynamic accuracy 0.1% with transition plate for consistently exact measurements.
- High-Strength Aluminum Alloy Structure: Large-tonnage extrusion and precision German CNC machining ensure a lightweight, rigid, and dimensionally consistent platform.
- Wide Temperature Adaptability: Reliable operation from -30°C to +80°C after rigorous high/low temperature aging tests.
- Compact and Convenient: Integrated platform and approach ramp allow direct placement on hardened surfaces, reducing foundation costs and simplifying installation, use, and storage.
- Customized Solutions: Flexible configuration of platform structure, module quantity, sensor count, and capacity range to match diverse application needs.
- Advanced Signal Transmission: Supports wired and wireless modes; proprietary YSXLB wireless offers high sensitivity, strong anti-interference, and >30 m unobstructed range.
- Rich Peripheral Interfaces: Instruments enable online upgrades, automatic vehicle identification, software integration, multiple axle type selections, and multilingual operation.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
