YB 650LC
The YB650LC is a DIN rail-mounted weighing transmitter designed for industrial applications. It offers high precision and robust performance, making it ideal for various weighing tasks in demanding environments.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Model | YB 650LC Weighing Indicator |
| Size(L×W×H，mm) | 92×74×36.7 |
| Power supply | 12V~36V DC |
| Operating | 4 film keys |
| Communication interface | RS232, RS485,support RTU |
| Display | LED digital tube with 6 LED status indicators |
| PLC interface update rate | 400Hz |
| Waterproof rating | IP65 |
| Operating temperature | -10℃~+40℃ |
| Storage temperature | -30℃~+60℃ |
| Relative humidity | ≤95%RH |
Features and Functions
- High-Precision Weighing: A/D conversion up to 800 samples per second delivers fast, accurate measurements for demanding industrial processes.
- Versatile Connectivity: Standard RS232 and RS485 interfaces plus optional analog output for flexible system integration.
- Robust & Reliable Operation: Engineered for durability and consistent performance in harsh industrial environments.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.

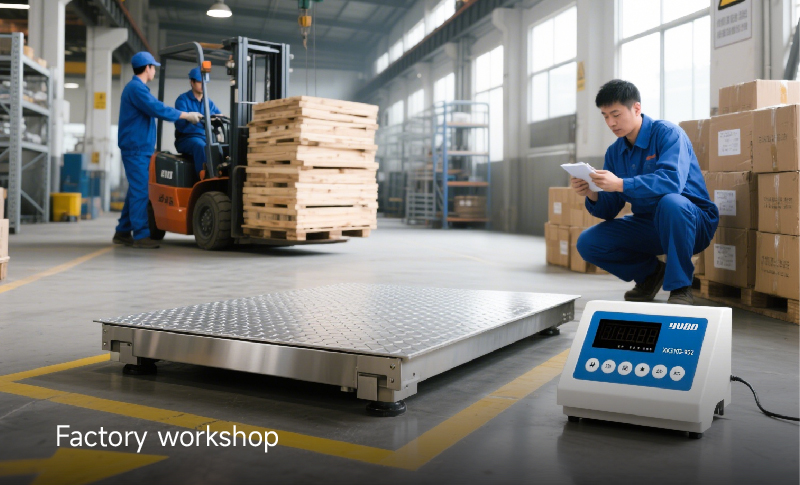

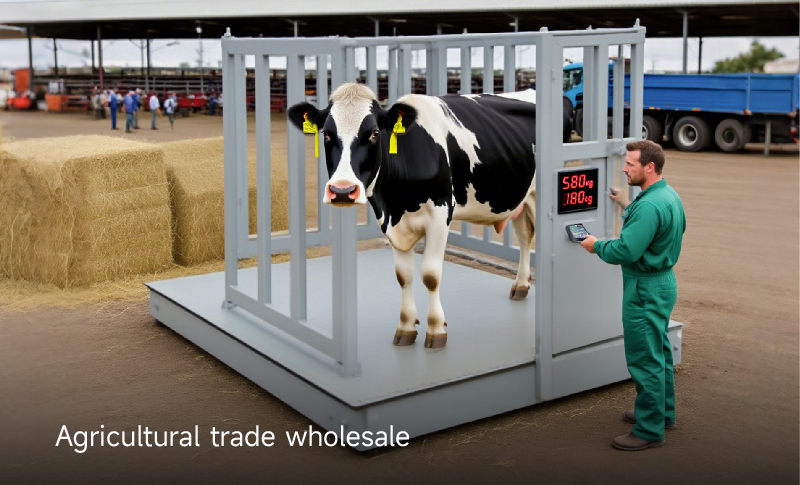

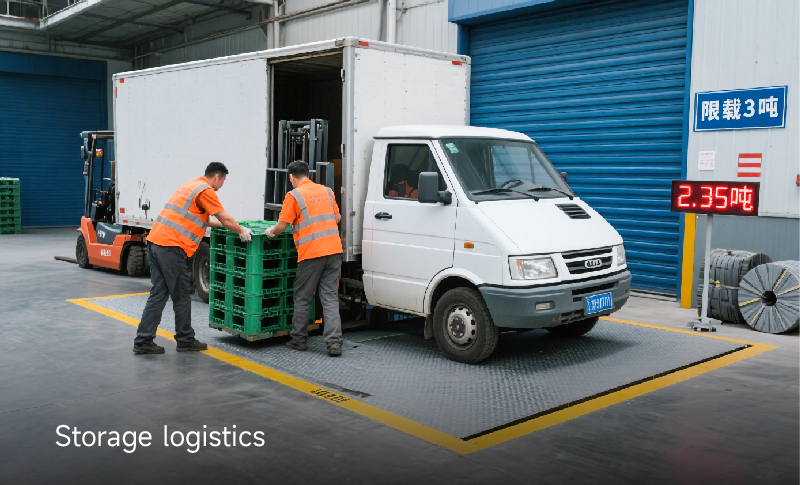

Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
