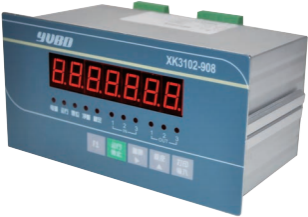

908 Indicator
The 908 Indicator is engineered for high-speed and high-precision weighing control applications. Utilizing advanced MCS—51 microprocessor and high-speed Z-A/D conversion technology, it achieves a conversion rate of up to 80 times per second. Ideal for use with resistive strain sensors, it is widely applied in batching scales, quantitative packaging scales, and control scales.
Specifications
| Manufacturer | Changzhou YUBO Bectronic Scale Co.,Ltd |
|---|---|
| Brand | YUBO |
| Model | 908 Weighing Indicator |
| Accuracy | Class III, n=3000 |
| Nonlinearity | ≤0.01%F.S |
| Sensor sensitivity range | -19mV~+19mV |
| Division | 1/2/5/10/20/50/100 selectable |
| Display | LED digital tube with 7 LED status indicators |
| Communication interface | RS232/485, baud rate 1200/2400/4800/9600bps selectable |
| Power supply | AC 110~230V,50/60Hz,1A |
| Operating temperature | 0℃~+40℃ |
| Storage temperature | -20℃~+50℃ |
| Relative humidity | ≤90%RH |
Features and Functions
- Advanced Measurement Technology: High‑precision A/D conversion (1/30,000 readability) with 5‑point nonlinear correction for accurate, stable measurements across conditions.
- Versatile Control & Connectivity: 3 external control inputs and 3 control outputs; supports RS232 / RS422 / RS485, 0–20 mA / 4–20 mA DA output, and serial printer integration for flexible data management.
- Reliable & User-Friendly: Peak hold, tare, data backup, real-time clock/calendar, and strong anti-interference performance for dependable industrial operation.
Indicator Selection
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 10.1-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
- 8-inch touch screen
- Voice data transmission
- On-site weighing data printing
Application Scenario
- Highway, traffic police, road administration and other departments to check the law enforcement of vehicle overload.
- Vehicle manufacturers' requirements for wheel weight, axle weight and total weight of vehicles.
- Industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises' demand for vehicle weighing.
- Places where fixed weighbridges are installed without the permission of the site, or the needs of individuals and enterprises that need to move the site frequently.
Products in Action
Common Problems
We offer a standard 2-year warranty on all models, with optional extended service packages.
Calibration instructions are provided in the user manual. We also offer on-site calibration services. Please contact our support team for assistance.
Our scales come in various capacities, ranging from 500kg to 10 tons. The specific capacity is listed on each product page.
Many of our industrial models are rated IP67 or IP68 for water and dust resistance, making them suitable for harsh environments. Please check the specifications for the model you are interested in.
